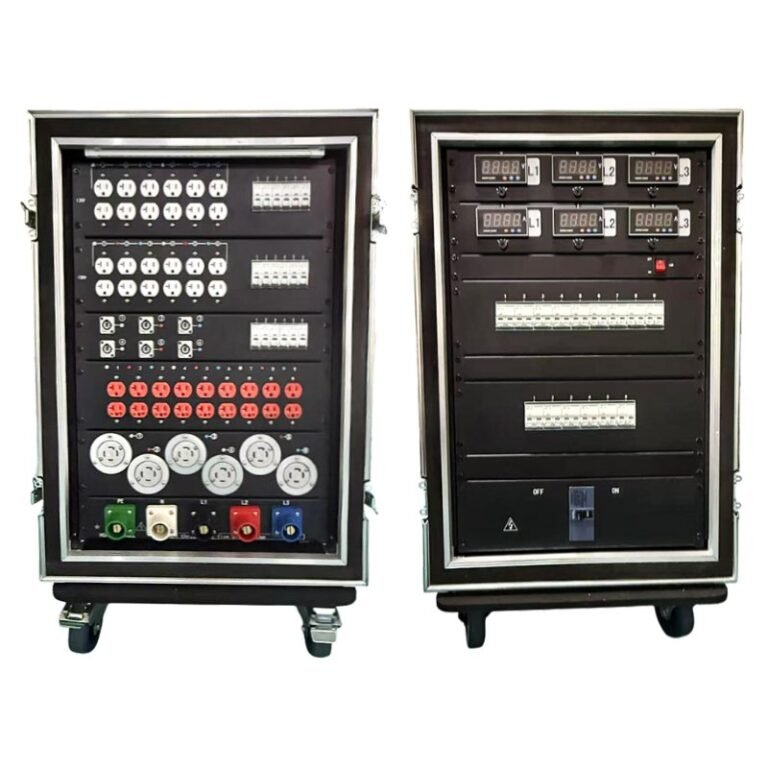

16U 33 Way Light Power Distribution – 3 Phase 250A with LED Indicators and V/A Meters

Professional Light Power Distribution for Stage and Event Systems

This 16U 33-way light power distribution unit is built for modern event production, delivering safe, organized, and visible power control to stage lighting and AV gear. Featuring a 3-phase 400A camlock input, it offers a versatile mix of 120V and 220V outputs, making it ideal for shows that demand both American and international standards.

Packed into a durable shockproof rack case, this system includes digital voltage/current meters, channel LED indicators, and a Schneider main breaker to ensure both usability and protection.

Technical Overview – Stage Power Distribution Rack

Input Configuration

• 3 Phase 400A, 220V Camlock In – stable power for high-capacity lighting systems

• Based on three-phase electric power for balanced load across multiple output circuits

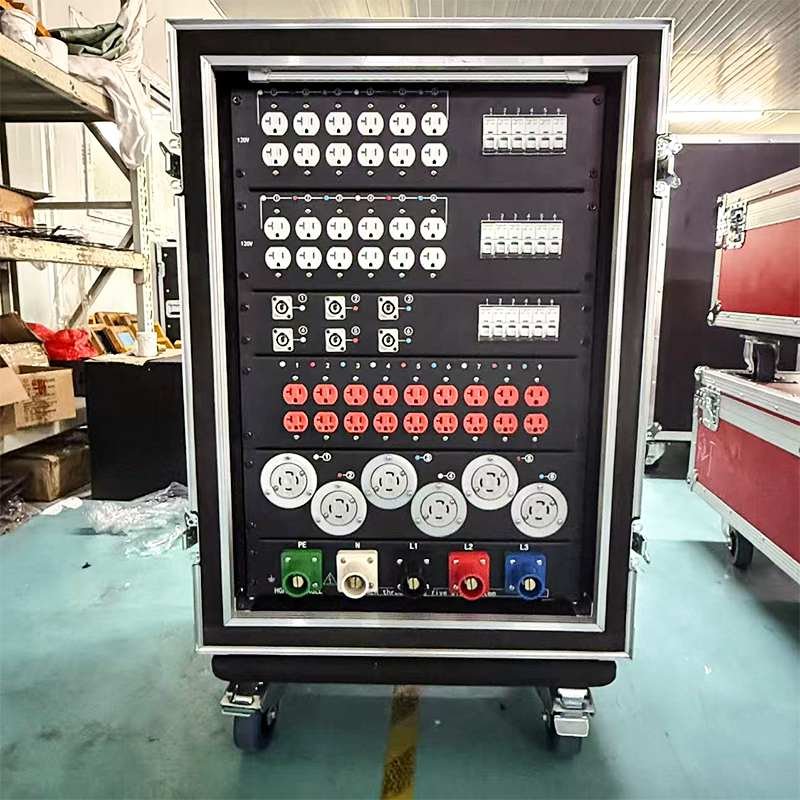

Output Configuration – Multivoltage Lighting Support

• 12 × L5-20 120V (White) Outputs – for standard U.S. fixtures and dimmer racks

• 6 × Powercon 120V Outputs – ideal for LED lighting and control gear

• 9 × L5-20 220V (Red) Outputs – suitable for higher-power lighting equipment

• 6 × L14-30R Outputs – support mixed-load rigs or sub-distribution units

Protection and Monitoring

• Main Breaker: Schneider 250A, 3-pin

• LED Indicators: Each output channel has a dedicated light for real-time monitoring

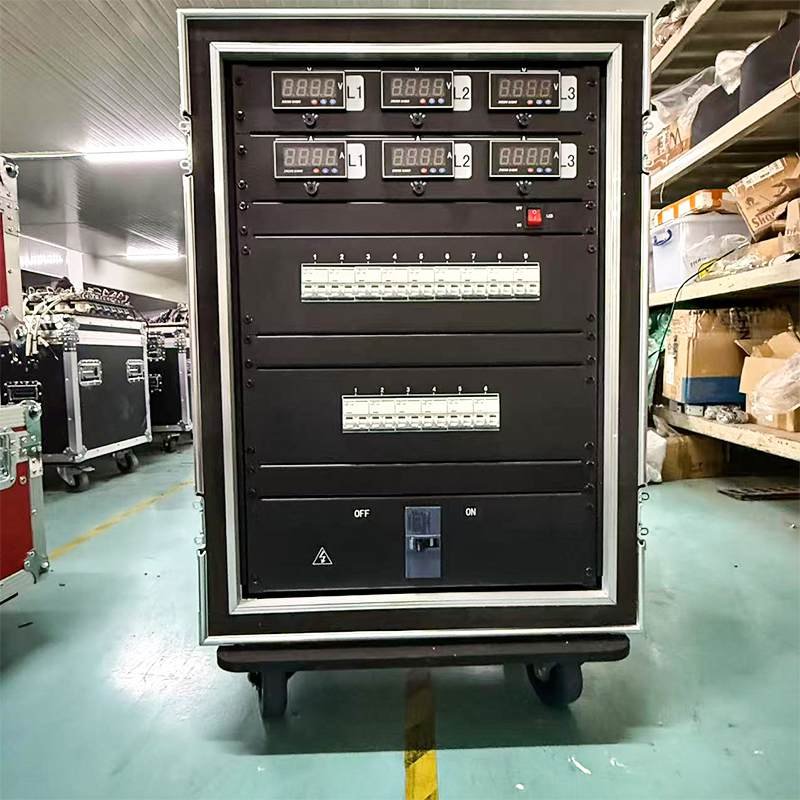

• Digital V and A Meters: Voltage and current meters keep operators informed at a glance

• Breaker Architecture: Individual branch breakers protect every circuit

Enclosure and Design

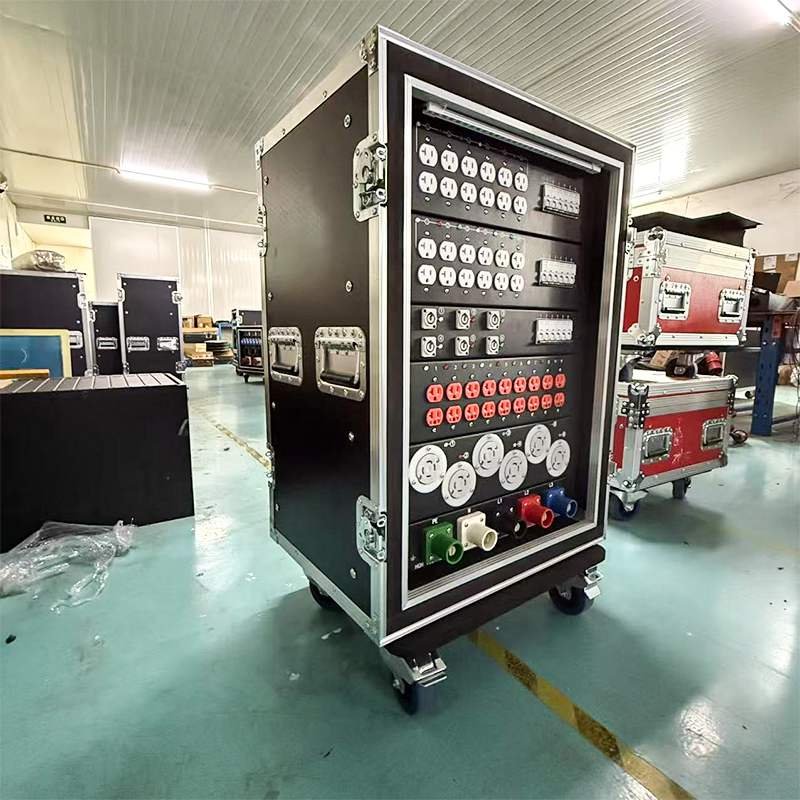

• Chassis: 16U Shockproof Flight Case

• Appearance: Clean, professional, and road-ready

• User Convenience: Simple layout for fast setup, monitoring, and teardown

Why Choose This Light Power Distribution Box?

This unit provides production crews with an efficient, intuitive lighting power distro for stage and touring use. Designed for practical deployment, it eliminates guesswork during setup, thanks to live feedback via LED and digital meters.

Ideal for events using a mix of lighting gear—from low-power LED fixtures to high-draw dimmers—this power rack for lighting is adaptable, safe, and built for life on the road.

Ideal Use Cases

• Concert Tours & Festivals – Drive diverse lighting arrays

• Theatrical Lighting Rigs – Combine 120V and 220V power systems

• Broadcast & Film Sets – Ensure consistent power with monitoring

• Rental & AV Companies – Dependable and reusable for multi-client setups

Key Advantages Recap

1. Elegant, functional design that supports rapid deployment

2. Full protection from main and branch breakers

3. Per-channel LED indicators for fast visual diagnostics

4. Digital voltage and current meters to track real-time load behavior

5. Shockproof case ready for transport and harsh environments
